 Printable PDF version
 View Demo Video
DESTROYS
CD's  DVD's
Paper Documents
Punched Key Tape
Magnetic Tape
Films  Negatives  Microfilm
ID Badges  Smart Cards
Plastic Credit Cards

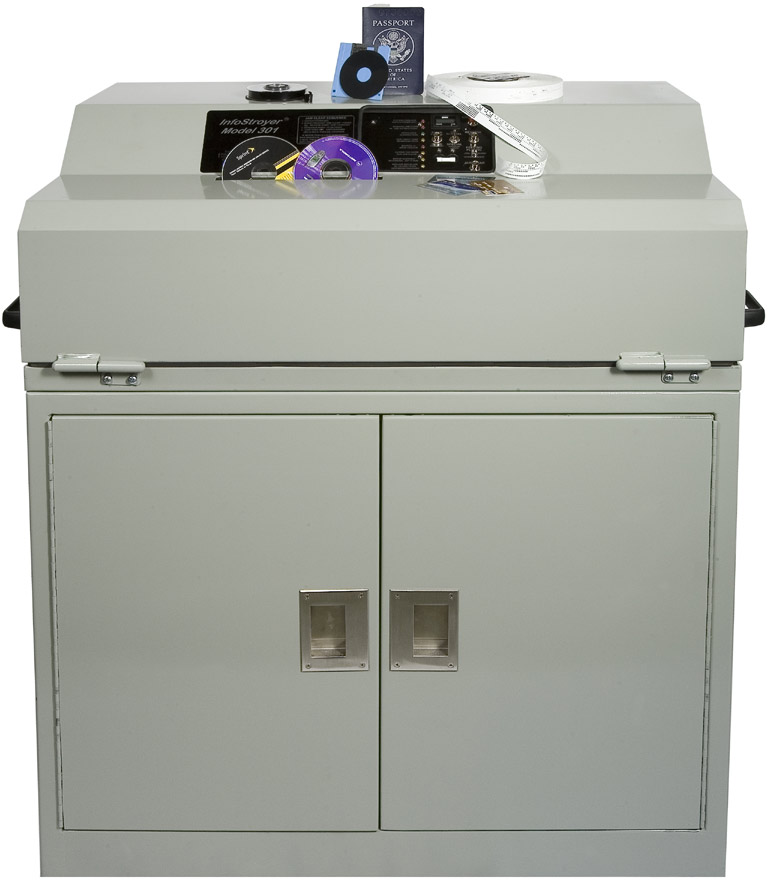

 >>View Enlargement<<

R&D 100 2008 AWARD WINNER 2008 AWARD WINNER
Selected by the prestigious Research and Development Magazine as one of the
100 MOST SIGNIFICANT TECHNOLOGY PRODUCTS OF THE YEAR


BENEFITS
Destroys All Forms of Media
High Capacity
Jam Avoidance
Auto Jam Clearing
Self Healing Cutting System
No Oiling
No Expensive Collection Bags
Self Cleaning Air Filters
No Expensive Maintenance Kits
MagnaStroyer (accessory)
InfoStroyer®, DocuStroyer®, CryptoStroyer® & MagnaStroyer© technology covered under fifteen separate patents. Other U.S. and foreign patents pending
Infostroyer® 301 has been evaluated by the NSA and meets the requirements of NSA/CSS 02-02, High Security Disintegrators and NSA/CSS 04-02, Optical Media Destruction Devices

Specifications
Throat Width
Power

Weight
Dimensions (HxWxD)
Cutting system, Zero Clearance
Jam AVOIDANCE
Jam Clearing
Residue Collection
Residue Dimension
9"
240V / 1Ph / 60Hz / 20 amps (standard)
50-60Hz switch selectable (standard)
Approx. 350 lbs. / 160 kg
48" x 36" x 22" / 122cm x 91cm x 56cm
Single moving part, SELF HEALING
Automatic
Automatic or Manual (operator push-button command)
Internal high performance vacuum, SELF CLEANING filters
DUST-like particles, smallest available globally

Throughput
Paper Capacity
CD's, DVD's
Punched Key Tape
Floppy Disc (metallic hub removed)
 Up to 30 sheets single pass (8.5 x 11, 20lb)
Up to 3000 per hour
Up to 50 pieces single pass or bunch feed
2000 per hour (also destroys plastic floppy case)


"BENEFITS" EXPLANATIONS

R & D 100 Award - the ONLY data destruction device recognized as one of the top 100 technological innovations in 2008 by the prestigious Research and Development Magazine. The InfoStroyer 301 revolutionizes data destruction destruction by combining unique technologies to offer high performance, low cost, and minimal maintenance; no other known data destruction technology offers this combination.

InfoStroyer 301 - one single device approved by the NSA that destroys all forms of media without any adjustment or decision by the operator.

High Capacity - with adaptive load sensing, the InfoStroyer 301 automatically recognizes amount and type of load fed by the operator and automatically adjusts itself for maximum throughput.

Jam Avoidance - automatic self-sensing system nearly eliminates the possibility of jamming.

Auto Jam Clearing - system automatically senses, stops and clears jams (also has manual jam clearing push-button command).

Zero Clearance Cutting System - constantly auto-adjusted, ZERO cutter clearance for consistently crisp, fine cutting action.

Self Healing Technology - automatically repairs the damage if injured by foreign objects that the InfoStroyer 301 is not designed to destroy. The ONLY known data destruction device that can do that.

No Oiling - InfoStroyer 301 doesn't require oiling like many other data destruction technologies.

Residue Collection - internal high performance vacuum with Self-Cleaning Permanent 1 Micron air filters. System uses inexpensive plastic bags (can also use with no bags at all) and the air filters never need cleaning or replacing; unlike other data destruction technologies.

Maintenance Kits - no expensive maintenance kits are required. InfoStroyer 301 is extremely easy to maintain and is designed in such a way that it can be completely rebuilt in the field using ordinary hand tools.

MagnaStroyer - a snap-on optional accessory that is NSA approved (EPL listed) to destroy magnetic media. With the MagnaStroyer installed, the InfoStroyer 301 becomes the ONLY data destruction device that can securely degauss AND physically destroy magnetic media in a Single-pass.

Patents - InfoStroyer®, DocuStroyer®, CryptoStroyer® & MagnaStroyer© technologies covered under 14 separate patents: 6,938,844 - 7,090,156 - 7,090,214 - 7,100,852 - 7,111,801 - 7,175,116 - 7,204,436 - 7,240,864 - 7,267,294 - 7,270,282 - 7,334,747 - 7,357,340 - 7,424,981 - 7,427,040

Other U.S. and foreign patents pending.
